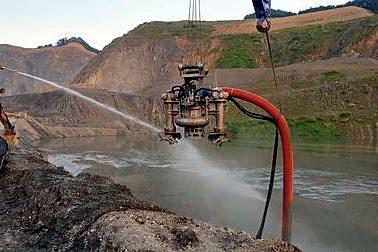

Mining and Tailings
Phosphate tailings, iron ore and mineral slurries at high concentration.
Phosphate tailings ponds, Singapore client
Heavy Duty Dredge Pump Built in Italy.
Submersible dredge and slurry pumps for mining, dredging and marine work, with stock, service and engineers in Singapore.
- 80%solids by weight
- 120 mmparticle passage
- 2,000+ m³/hmaximum flow
- 6territories served
Engineered solutions, not just pumps
Every Dragflow pump is designed for high-solids handling, abrasion resistance and continuous duty in the field.
Italian engineeringDesigned and built by Dragflow S.r.l. since the 1980s.
Hydraulic or electricHY Series for excavators and power packs, EL Series for mains power.
Up to 70–80% solidsMoves thick slurry that stalls ordinary pumps.
Particles up to 120 mm+Large passages for gravel, rock and debris.
High-chrome wear parts27% chrome alloy impellers and agitators.
Local stock and serviceParts, commissioning and support from Singapore.
Our Products
Choose a range, then select a model to see its photo, specifications and data sheet.
Built for the toughest jobs
From phosphate tailings to harbour maintenance, our pumps move abrasive, high-concentration material around the clock. Select an application to learn more.

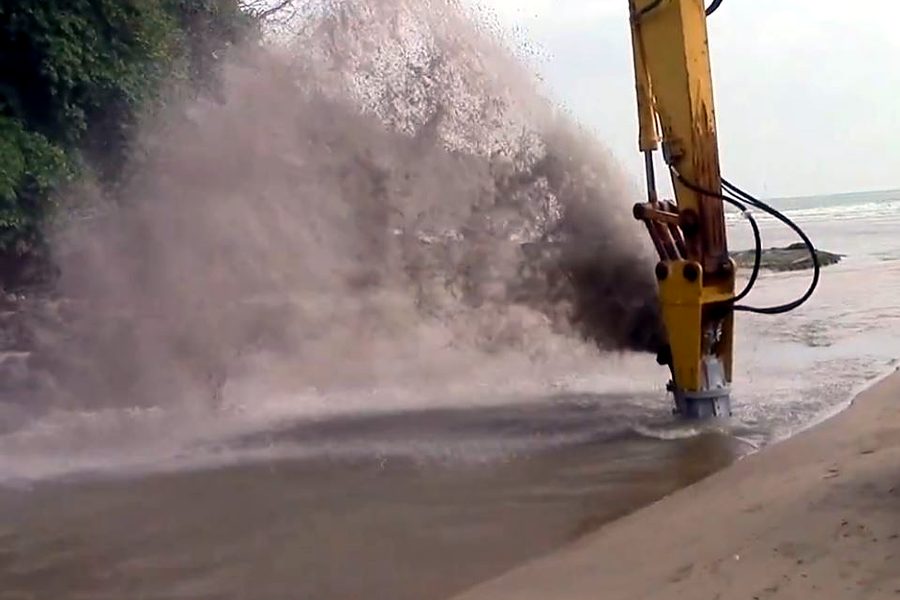

Dredging and Waterways
River maintenance, harbour clearing, navigation and sediment removal.
River and harbour projects

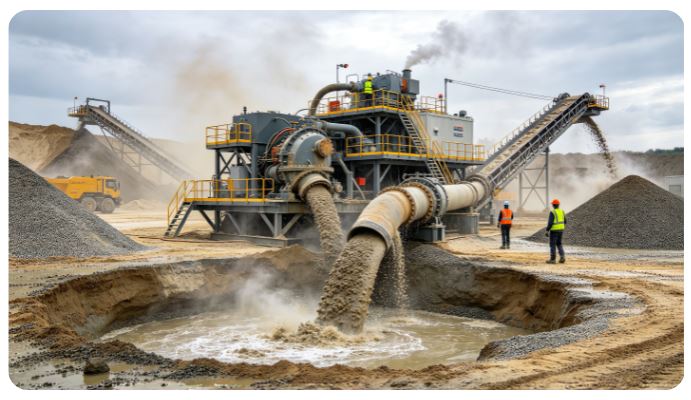

Sand and Gravel
Extraction, transfer, desilting and beach nourishment.
High-solids pumping up to 70%+

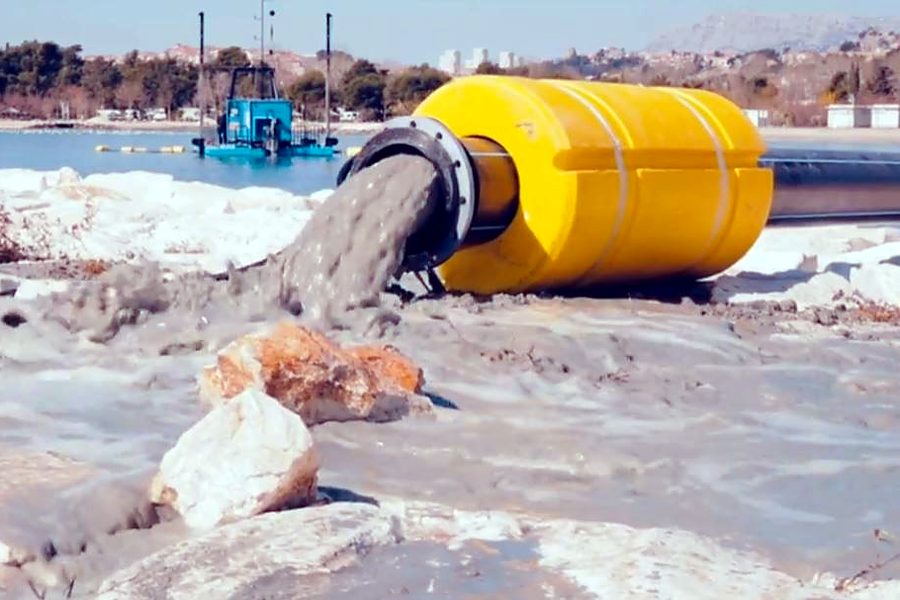

Marine and Coastal
Land reclamation, port maintenance and lagoon dredging.
Workboat and underwater deployment

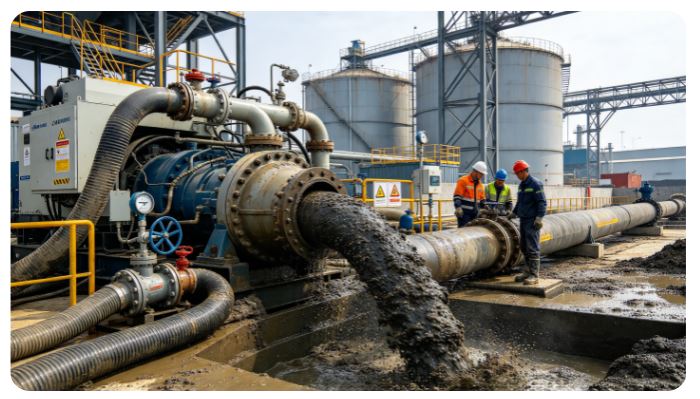

Industrial Slurry
Wastewater, sediment pits, construction slurry and tunnelling.
Continuous-duty abrasive work

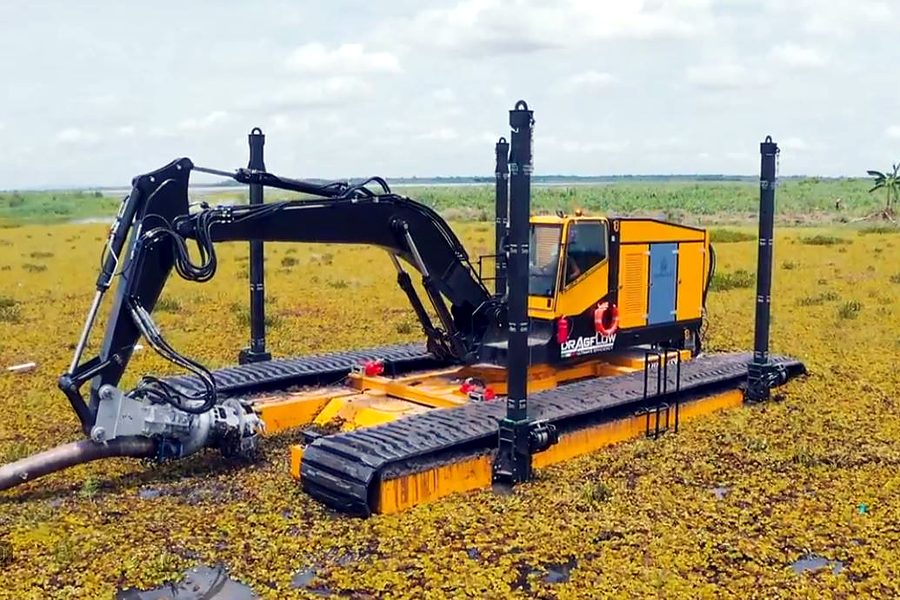

Environmental
Pond cleaning, reservoir maintenance and sediment remediation.
Low-impact electric options
Technical capability
The full Dragflow range at a glance. Each bar shows what the range covers.
Flow 100 – 2,000+ m³/h
Head 10 – 100 m
Solids concentration Up to 70–80% by weight
Particle size Up to 120 mm
Power 15 – 500+ kW
Across every pump
- Drive types
- Hydraulic (HY) / Electric (EL)
- Wet end
- High-chrome alloy, 27% Cr
- Rotation
- 600–900 RPM, low speed for less wear
- Discharge
- DN100 – DN300+
How a dredge pump works
- SuctionWater and solids are drawn into the inlet from the bed.
- AgitationThe agitator lifts settled material into suspension.
- AccelerationThe low-speed impeller adds energy to the slurry.
- DischargeSlurry travels through the pipeline to its destination.
Suggested starting point
HY Series
Watch the pumps at work
Demonstrations, dredging operations and field projects on our YouTube channel, @DredgePump.
Italian heritage, local support
Dredge Pump Singapore Pte Ltd is the exclusive distributor of Dragflow S.r.l., Italy's leading manufacturer of submersible dredge pumps, slurry pumps and complete dredging systems.
Since the 1980s, Dragflow has built heavy-duty pumps for mining, dredging, marine maintenance, sand and gravel extraction, tailings and industrial slurry. From our base in Singapore we bring that engineering to sites across the region.
SingaporeHeadquarters
Malaysia
Myanmar
Cambodia
Laos
Philippines
How we support your project
- Pump selectionWe review your material, site and duty to specify the right pump and drive.
- SupplyFrom local stock or direct from Italy, with matched power packs.
- Commissioning and trainingOn-site setup, testing and operator training.
- Parts and after-salesHigh-chrome wear parts and servicing for the life of the pump.
Have a pumping challenge? Tell us about it.
Contact us
Call, WhatsApp or email us with your material and site details, and our engineers will recommend the right pump.
Phone+65 6745 0555
WhatsApp+65 8866 0555
Emailenquiry@dredge-pump.com
Address3014 Ubi Road 1, #01-298, Kampong Ubi Industrial Estate, Singapore 408702
